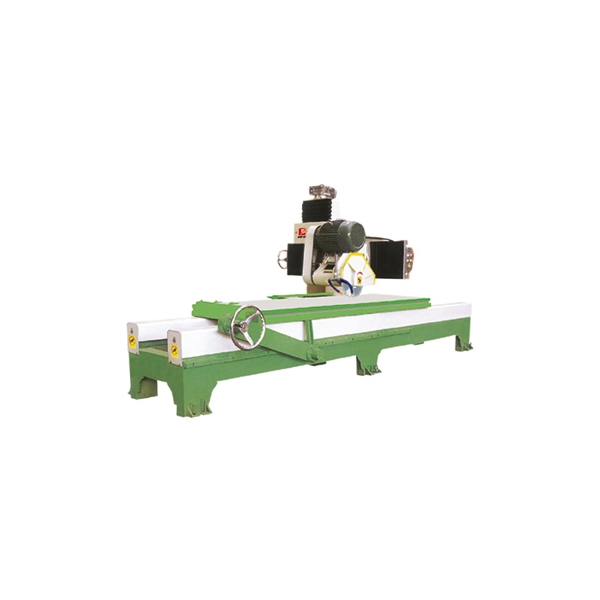

Manual Edge Cutting Machine
Home - Products - Bridge Cutting Machine - Manual Edge Cutting Machine
1.This machine cutting head can rotate 180 degrees, suitable for different specifications, different Angle trimming.
2.guide the sealing oil-immersed steel parts structure, completely solve the water, chip, dust to slide pollution, corrosion, the life than ordinary extend more than 10 times.
3.Improve the cutting quality of products, flatness, straightness, vertical degree are better than ordinary improve 2- 3 orders of magnitude.
2.guide the sealing oil-immersed steel parts structure, completely solve the water, chip, dust to slide pollution, corrosion, the life than ordinary extend more than 10 times.
3.Improve the cutting quality of products, flatness, straightness, vertical degree are better than ordinary improve 2- 3 orders of magnitude.
（Swipe left to see more）
| Name | Unit | QBJ-350 | QBJ-600 |
| Diameter of blade | mm | φ350 | φ600 |
| Max cutting length | mm | 2400 | 3000 |
| Max cutting width | mm | 1200 | 1200 |
|
Max cutting thickness |
mm | 70 | 250 |
| Water consumption | m³/h | 2 | 3 |
| Power of main-drive | kw | 11 | 15 |
| Overall dimension(L*W*H) | mm | 4500*2200*1700 | 5300*2200*1700 |
| Approximate weight | kg | 2500 | 3000 |
